Cosmic Automatic Point Soldering System

Cosmic Point-Solder Unit PSU500 is the optimal electronic assembly equipment that enables you, with a superb precision, to solder components on the joint, regardless of the shape and / or the material to be joined.
We have devised our own system by using a soldering ceramic tip that can be heated and prevent solder from sticking to it as well, whereby PSU500 excels in connecting one component to another (in the condition that the temperatures of the nib (tip) are set up on between 500 and 600 Celsius degrees).

All of these originated in our foresight, that is, we would’ve needed to provide a fix amount of solder to each point. We figured out the way to do that by cutting a solder wire evenly so that the whole process could attain to perfection and joints be stabilized as planned. Note: in order to solder many points on a component, all of the soldering data on PSU500 are adjustable to customize each soldering point. By digitizing the data, we’ve succeeded in helping you minimize the variance of daily, weekly and monthly output.

Merits for Cosmic Auto Soldering System user
1. Standard feature with lead-free solder.
2. Precise performance on through-hole soldering.
3. Stable projection of solder that is uniform in amount per joint.
4. Far less frequency of solder ball / bridge and very few flux scattering
5. Long life of soldering ceramic heater : It lasts more than 2000 hours !!
6. Shorter soldering time
7. Fast and stable heating system
8. Digital soldering
9. High yield, high quality soldering performance
10. Auto heater cleaning

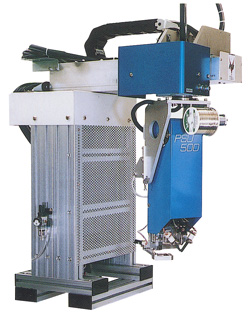

PDSTC2030 Series:

Overhead in-line type, full motorized X-Y-Z-θ, 200 x 300mm X-Y movement.

PDSBC2030 Series:

Desktop single stage type, full motorized X-Y-Z-θ, 200 x 300mm X-Y movement.

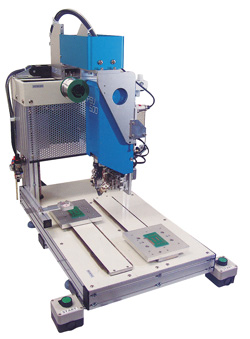

PDS2BC2030 Series:

Desktop dual stage type, full motorized X-Y-Z-θ, 200 x 300mm X-Y movement.

Video

Flux Completely Application while soldering

Through-Hole Video

Wire Soldering Video
